bactopia

Tags: bacteria assembly annotation amr mlst genomics pipeline named-workflow

Comprehensive bacterial analysis pipeline for complete genomic characterization.

This workflow performs end-to-end analysis including quality control, assembly, annotation, antimicrobial resistance detection, MLST typing, and optional pathogen-specific analysis through Merlin. It processes raw sequencing reads and produces a complete genomic characterization suitable for downstream analysis.

Pipeline Overview

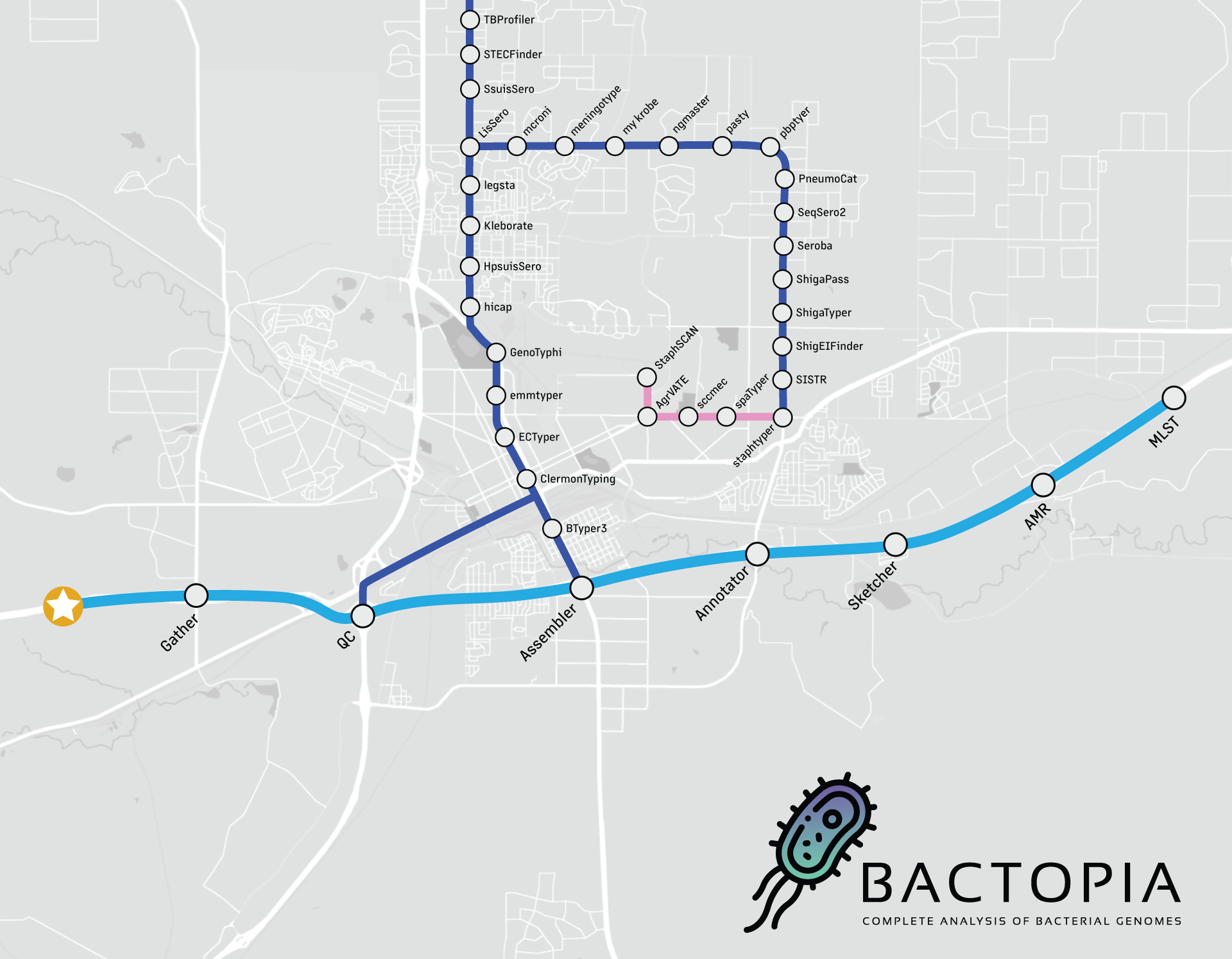

Bactopia Workflow

Looking at the workflow overview above, it might not look like much is happening, but I can assure you that a lot is going on. The workflow is broken down into 8 steps, which are:

Gather - Collect all the data in one place
QC - Quality control of the data
Assembler - Assemble the reads into contigs
Annotator - Annotate the contigs
Sketcher - Create a sketch of the contigs, and query databases
Sequence Typing - Determine the sequence type of the contigs
Antibiotic Resistance - Determine the antibiotic resistance of the contigs and proteins
Merlin - Automatically run species-specific tools based on distance

If you are looking for a guide to get started quickly, please check out the Beginner's Guide.

Step 1 - Gather

The main purpose of the gather step is to get all the samples into a single place. This includes downloading samples from ENA/SRA or NCBI Assembly. The tools used are:

Tool	Description
art	For simulating error-free reads for an input assembly
fastq-dl	Downloading FASTQ files from ENA/SRA
ncbi-genome-download	Downloading FASTA files from NCBI Assembly

This gather step also does basic QC checks to help prevent downstream failures.

Failed Quality Checks

Filename	Description
-gzip-error.txt	Sample failed Gzip checks and excluded from further analysis
-low-basepair-proportion-error.txt	Sample failed basepair proportion checks and excluded from further analysis
-low-read-count-error.txt	Sample failed read count checks and excluded from further analysis
-low-sequence-depth-error.txt	Sample failed sequenced basepair checks and excluded from further analysis

Poor samples are excluded to prevent downstream failures

Samples that fail any of the QC checks will be excluded from further analysis. Those samples will generate a *-error.txt file with the error message. Excluding these samples prevents downstream failures that cause the whole workflow to fail.

Example Error: Input FASTQ(s) failed Gzip checks

If input FASTQ(s) fail to pass Gzip test, the sample will be excluded from further analysis.

Example Text from <SAMPLE_NAME>-gzip-error.txt <SAMPLE_NAME> FASTQs failed Gzip tests. Please check the input FASTQs. Further analysis is discontinued.

Example Error: Input FASTQs have disproportionate number of reads

If input FASTQ(s) for a sample have disproportionately different number of reads between the two pairs, the sample will be excluded from further analysis. You can adjust this minimum read count using the --min_proportion parameter.

Example Text from <SAMPLE_NAME>-low-basepair-proportion-error.txt <SAMPLE_NAME> FASTQs failed to meet the minimum shared basepairs. They shared Y basepairs, with R1 having A bp and R2 having B bp. Further analysis is discontinued.

Example Error: Input FASTQ(s) has too few reads

If input FASTQ(s) for a sample have less than the minimum required reads, the sample will be excluded from further analysis. You can adjust this minimum read count using the --min_reads parameter.

Example Text from <SAMPLE_NAME>-low-read-count-error.txt <SAMPLE_NAME> FASTQ(s) contain X total reads. This does not exceed the required minimum Y read count. Further analysis is discontinued.

Example Error: Input FASTQ(s) has too little sequenced basepairs

If input FASTQ(s) for a sample fails to meet the minimum number of sequenced basepairs, the sample will be excluded from further analysis. You can adjust this minimum read count using the --min_basepairs parameter.

Example Text from <SAMPLE_NAME>-low-sequence-depth-error.txt <SAMPLE_NAME> FASTQ(s) contain X total basepairs. This does not exceed the required minimum Y bp. Further analysis is discontinued.

Step 2 - QC

The qc module uses a variety of tools to perform quality control on Illumina and Oxford Nanopore reads. The tools used are:

Tool	Technology	Description
bbtools	Illumina	A suite of tools for manipulating reads
fastp	Illumina	A tool designed to provide fast all-in-one preprocessing for FastQ files
fastqc	Illumina	A quality control tool for high throughput sequence data
fastq_scan	Nanopore	A tool for quickly scanning FASTQ files
lighter	Illumina	A tool for correcting sequencing errors in Illumina reads
NanoPlot	Nanopore	A tool for plotting long read sequencing data
nanoq	Nanopore	A tool for calculating quality metrics for Oxford Nanopore reads
porechop	Nanopore	A tool for removing adapters from Oxford Nanopore reads
rasusa	Nanopore	Randomly subsample sequencing reads to a specified coverage

Similar to the gather step, the qc step will also stop samples that fail to meet basic QC checks from continuing downstream.

Failed Quality Checks

Filename	Description
.error-fastq.gz	A gzipped FASTQ file of reads that failed QC
-low-read-count-error.txt	Sample failed read count checks and excluded from further analysis
-low-sequence-coverage-error.txt	Sample failed sequenced coverage checks and excluded from further analysis
-low-sequence-depth-error.txt	Sample failed sequenced basepair checks and excluded from further analysis

Poor samples are excluded to prevent downstream failures

Example Error: After QC, too few reads remain

If after cleaning reads, a sample has less than the minimum required reads, the sample will be excluded from further analysis. You can adjust this minimum read count using the --min_reads parameter.

Example Error: After QC, too little sequence coverage remains

If after cleaning reads, a sample has failed to meet the minimum sequence coverage required, the sample will be excluded from further analysis. You can adjust this minimum read count using the --min_coverage parameter.

Note: This check is only performed when a genome size is available.

Example Text from <SAMPLE_NAME>-low-sequence-coverage-error.txt After QC, <SAMPLE_NAME> FASTQ(s) contain X total basepairs. This does not exceed the required minimum Y bp (Zx coverage). Further analysis is discontinued.

Example Error: After QC, too little sequenced basepairs remain

If after cleaning reads, a sample has failed to meet the minimum number of sequenced basepairs, the sample will be excluded from further analysis. You can adjust this minimum read count using the --min_basepairs parameter.

Step 3 - Assembler

The assembler module uses a variety of assembly tools to create an assembly of Illumina and Oxford Nanopore reads. The tools used are:

Tool	Description
Dragonflye	Assembly of Oxford Nanopore reads, as well as hybrid assembly with short-read polishing
Shovill	Assembly of Illumina paired-end reads
Shovill-SE	Assembly of Illumina single-end reads
Unicycler	Hybrid assembly, using short-reads first then long-reads

Summary statistics for each assembly are generated using assembly-scan.

Prefer --short_polish over --hybrid with recent ONT sequencing

Using Unicycler (--hybrid) to create a hybrid assembly works great when you have low-coverage noisy long-reads. However, if you are using recent ONT sequencing, you likely have high-coverage and using the --short_polish method is going to yield better results (and be faster!) than --hybrid.

Failed Quality Checks

Filename	Description
-assembly-error.txt	Sample failed assembly checks and excluded from further analysis

Poor samples are excluded to prevent downstream failures

Example Error: Assembled Successfully, but 0 Contigs

If a sample assembles successfully, but 0 contigs are formed, the sample will be excluded from further analysis.

Example Text from <SAMPLE_NAME>-assembly-error.txt <SAMPLE_NAME> assembled successfully, but 0 contigs were formed. Please investigate <SAMPLE_NAME> to determine a cause (e.g. metagenomic, contaminants, etc...) for this outcome. Further assembly-based analysis of <SAMPLE_NAME> will be discontinued.

Example Error: Assembled successfully, but poor assembly size

If your sample assembles successfully, but the assembly size is less than the minimum allowed genome size, the sample will be excluded from further analysis. You can adjust this minimum size using the --min_genome_size parameter.

Example Text from <SAMPLE_NAME>-assembly-error.txt <SAMPLE_NAME> assembled size (000 bp) is less than the minimum allowed genome size (000 bp). If this is unexpected, please investigate <SAMPLE_NAME> to determine a cause (e.g. metagenomic, contaminants, etc...) for the poor assembly. Otherwise, adjust the --min_genome_size parameter to fit your need. Further assembly based analysis of <SAMPLE_NAME> will be discontinued.

Step 4 - Annotator

The annotator step uses either Prokka (default) or Bakta (via --use_bakta) to annotate assembled contigs with functional information including genes, proteins, rRNA, tRNA, and other genomic features.

Step 5 - Sketcher

The sketcher module uses Mash and Sourmash to create sketches and query RefSeq and GTDB.

Step 6 - Sequence Typing

The mlst step uses mlst to scan assemblies against PubMLST typing schemes and determine the sequence type.

Step 7 - Antibiotic Resistance

The amrfinderplus step uses AMRFinder+ to identify antimicrobial resistance genes and point mutations from both assembled contigs and annotated protein sequences.

Step 8 - Merlin

The merlin step automatically selects and runs species-specific typing tools based on Mash distance results from the sketcher step. Enable with --ask_merlin. See the Pathogen-Specific Analysis output section below for the full list of supported organisms and tools.

Usage

Bactopia CLI:

bactopia \
  --input samples.csv \
  --outdir results/

Nextflow:

nextflow run bactopia/bactopia \
  --input samples.csv \
  --outdir results/

Outputs

Expected Output Files

<BACTOPIA_DIR>
├── <SAMPLE_NAME>
│   ├── main
│   │   ├── annotator
│   │   │   └── prokka
│   │   │       ├── <SAMPLE_NAME>-blastdb.tar.gz
│   │   │       ├── <SAMPLE_NAME>.faa.gz
│   │   │       ├── <SAMPLE_NAME>.ffn.gz
│   │   │       ├── <SAMPLE_NAME>.fna.gz
│   │   │       ├── <SAMPLE_NAME>.fsa.gz
│   │   │       ├── <SAMPLE_NAME>.gbk.gz
│   │   │       ├── <SAMPLE_NAME>.gff.gz
│   │   │       ├── <SAMPLE_NAME>.sqn.gz
│   │   │       ├── <SAMPLE_NAME>.tbl.gz
│   │   │       ├── <SAMPLE_NAME>.tsv
│   │   │       ├── <SAMPLE_NAME>.txt
│   │   │       └── logs
│   │   │           ├── <SAMPLE_NAME>.err
│   │   │           ├── <SAMPLE_NAME>.log
│   │   │           ├── nf.command.{begin,err,log,out,run,sh,trace}
│   │   │           └── versions.yml
│   │   ├── assembler
│   │   │   ├── <SAMPLE_NAME>.fna.gz
│   │   │   ├── <SAMPLE_NAME>.tsv
│   │   │   ├── logs
│   │   │   │   ├── nf.command.{begin,err,log,out,run,sh,trace}
│   │   │   │   ├── shovill-se.log
│   │   │   │   └── versions.yml
│   │   │   └── supplemental
│   │   │       └── shovill.corrections
│   │   ├── gather
│   │   │   ├── <SAMPLE_NAME>-meta.tsv
│   │   │   └── logs
│   │   │       ├── nf.command.{begin,err,log,out,run,sh,trace}
│   │   │       └── versions.yml
│   │   ├── qc
│   │   │   ├── <SAMPLE_NAME>_SE.fastq.gz
│   │   │   ├── logs
│   │   │   │   ├── <SAMPLE_NAME>-fastp.log
│   │   │   │   ├── nf.command.{begin,err,log,out,run,sh,trace}
│   │   │   │   └── versions.yml
│   │   │   └── supplemental
│   │   │       ├── <SAMPLE_NAME>.fastp.html
│   │   │       ├── <SAMPLE_NAME>.fastp.json
│   │   │       ├── <SAMPLE_NAME>_SE-final.json
│   │   │       ├── <SAMPLE_NAME>_SE-final_fastqc.html
│   │   │       ├── <SAMPLE_NAME>_SE-final_fastqc.zip
│   │   │       ├── <SAMPLE_NAME>_SE-original.json
│   │   │       ├── <SAMPLE_NAME>_SE-original_fastqc.html
│   │   │       └── <SAMPLE_NAME>_SE-original_fastqc.zip
│   │   └── sketcher
│   │       ├── <SAMPLE_NAME>-k21.msh
│   │       ├── <SAMPLE_NAME>-k31.msh
│   │       ├── <SAMPLE_NAME>-mash-refseq88-k21.txt
│   │       ├── <SAMPLE_NAME>-sourmash-gtdb-rs207-k31.txt
│   │       ├── <SAMPLE_NAME>.sig
│   │       └── logs
│   │           ├── nf.command.{begin,err,log,out,run,sh,trace}
│   │           └── versions.yml
│   └── tools
│       ├── amrfinderplus
│       │   ├── <SAMPLE_NAME>.tsv
│       │   └── logs
│       │       ├── nf.command.{begin,err,log,out,run,sh,trace}
│       │       └── versions.yml
│       └── mlst
│           ├── <SAMPLE_NAME>.tsv
│           └── logs
│               ├── nf.command.{begin,err,log,out,run,sh,trace}
│               └── versions.yml
└── bactopia-runs
    └── bactopia-<TIMESTAMP>
        ├── merged-results
        │   ├── amrfinderplus.tsv
        │   ├── assembly-scan.tsv
        │   ├── logs
        │   │   ├── amrfinderplus-concat
        │   │   │   ├── nf.command.{begin,err,log,out,run,sh,trace}
        │   │   │   └── versions.yml
        │   │   ├── assembly-scan-concat
        │   │   │   ├── nf.command.{begin,err,log,out,run,sh,trace}
        │   │   │   └── versions.yml
        │   │   ├── meta-concat
        │   │   │   ├── nf.command.{begin,err,log,out,run,sh,trace}
        │   │   │   └── versions.yml
        │   │   └── mlst-concat
        │   │       ├── nf.command.{begin,err,log,out,run,sh,trace}
        │   │       └── versions.yml
        │   ├── meta.tsv
        │   └── mlst.tsv
        └── nf-reports
            ├── bactopia-dag.dot
            ├── bactopia-report.html
            └── bactopia-timeline.html

Quality Control

File	Description
`supplemental/_fastqc.`	FastQC quality control reports for raw and cleaned reads
`supplemental/-NanoPlot.`	NanoPlot reports for Nanopore reads
`supplemental/.fastp.`	Fastp quality reports (when applicable)
`supplemental/*_original.json`	Quality metrics for original reads
`supplemental/*_final.json`	Quality metrics for final reads

Assembly

File	Description
`*.fasta`	Assembled genome sequences
`assembly-stats.tsv`	Assembly quality metrics
`merged-assembly-stats.tsv`	Consolidated assembly statistics

Annotation

note

Output format depends on chosen annotation tool (Bakta or Prokka)

File	Description
`*.gff.gz`	Genome annotation in GFF3 format (compressed)
`*.gbk.gz`	Genome annotation in GenBank format (compressed)
`*.faa.gz`	Protein sequences (compressed)
`*.fna.gz`	Nucleotide sequences from annotation (compressed)
`*.ffn.gz`	Feature nucleotide sequences (compressed)
`annotation.tsv`	Annotation summary tables
`blastdb.*`	BLAST database created from annotation

Typing

File	Description
`mlst.tsv`	MLST sequence type results
`merged-mlst.tsv`	Consolidated MLST results

Antimicrobial Resistance

File	Description
`amrfinderplus.tsv`	AMR gene detection results
`amrfinderplus.mutation.tsv`	AMR point mutation results
`merged-amrfinderplus.tsv`	Consolidated AMR results

Comparative Analysis

File	Description
`*-k21.msh`	Mash sketch files (k=21)
`*-k31.msh`	Mash sketch files (k=31)
`-mash-refseq88-.txt`	Mash screening results against RefSeq
`*.sig`	Sourmash signatures
`sourmash-*.txt`	Sourmash classification results

Pathogen-Specific Analysis

note

Only created if --ask_merlin is enabled

File	Description
`merlin/clermontyping/*`	E. coli phylogroup typing
`merlin/ectyper/*`	Enterotoxigenic E. coli typing
`merlin/shigatyper/*`	Shigella serotype prediction
`merlin/shigapass/*`	Shigella passive surveillance
`merlin/shigeifinder/*`	Shigella and EIEC detection
`merlin/stecfinder/*`	STEC detection and typing
`merlin/emmtyper/*`	S. pyogenes emm typing
`merlin/hicap/*`	H. influenzae capsular typing
`merlin/hpsuissero/*`	H. parasuis serotyping
`merlin/kleborate/*`	Klebsiella species typing
`merlin/staphtyper/*`	S. aureus spa typing
`merlin/agrvate/*`	S. aureus agr typing
`merlin/sccmec/*`	S. aureus SCCmec typing

Merged Results

note

Run-level aggregated results from all samples

File	Description
`samplesheet.tsv`	Sample metadata and quality metrics

Audit Trail

Below are files that can assist you in understanding which parameters and program versions were used.

Logs

Each process that is executed will have a folder named logs. In this folder are helpful files for you to review if the need ever arises.

Extension	Description
.begin	An empty file used to designate the process started
.err	Contains STDERR outputs from the process
.log	Contains both STDERR and STDOUT outputs from the process
.out	Contains STDOUT outputs from the process
.run	The script Nextflow uses to stage/unstage files and queue processes based on given profile
.sh	The script executed by bash for the process
.trace	The Nextflow trace report for the process
versions.yml	A YAML formatted file with program versions

Nextflow Reports

These Nextflow reports provide great a great summary of your run. These can be used to optimize resource usage and estimate expected costs if using cloud platforms.

Filename	Description
bactopia-dag.dot	The Nextflow DAG visualization
bactopia-report.html	The Nextflow Execution Report
bactopia-timeline.html	The Nextflow Timeline Report
bactopia-trace.txt	The Nextflow Trace report

Parameters

Required Parameters

The following parameters are how you will provide either local or remote samples to be processed by Bactopia.

Parameter	Type	Default	Description
`--samples`	string		A FOFN (via bactopia prepare) with sample names and paths to FASTQ/FASTAs to process

`--r1`	string		First set of compressed (gzip) Illumina paired-end FASTQ reads (requires --r2 and --sample)
`--r2`	string		Second set of compressed (gzip) Illumina paired-end FASTQ reads (requires --r1 and --sample)
`--se`	string		Compressed (gzip) Illumina single-end FASTQ reads (requires --sample)
`--ont`	string		Compressed (gzip) Oxford Nanopore FASTQ reads (requires --sample)
`--hybrid`	boolean	`false`	Create hybrid assembly using Unicycler. (requires --r1, --r2, --ont and --sample)
`--short_polish`	boolean	`false`	Create hybrid assembly from long-read assembly and short read polishing. (requires --r1, --r2, --ont and --sample)
`--sample`	string		Sample name to use for the input sequences

`--accessions`	string		A file containing ENA/SRA Experiment accessions or NCBI Assembly accessions to processed
`--accession`	string		Sample name to use for the input sequences

`--assembly`	string		A assembled genome in compressed FASTA format. (requires --sample)
`--check_samples`	boolean	`false`	Validate the input FOFN provided by --samples

Dataset Parameters

Define where the pipeline should find input data and save output data.

Parameter	Type	Default	Description
`--species`	string		Name of species for species-specific dataset to use
`--ask_merlin`	boolean		Ask Merlin to execute species specific Bactopia tools based on Mash distances
`--coverage`	integer	`100`	Reduce samples to a given coverage, requires a genome size
`--genome_size`	integer	`0`	Expected genome size (bp) for all samples, required for read error correction and read subsampling
`--use_bakta`	boolean		Use Bakta for annotation, instead of Prokka

Optional Parameters

These optional parameters can be useful in certain settings.

Parameter	Type	Default	Description
`--outdir`	string	`bactopia`	Base directory to write results to

Nextflow Profile Parameters

Parameters to fine-tune your Nextflow setup.

Parameter	Type	Default	Description
`--datasets_cache`	string	`<HOME>/.bactopia/datasets`	Directory where downloaded datasets should be stored.

Helpful Parameters

Uncommonly used parameters that might be useful.

Parameter	Type	Default	Description
`--wf`	string	`bactopia`	Specify which workflow or Bactopia Tool to execute
`--list_wfs`	boolean		List the available workflows and Bactopia Tools to use with '--wf'
`--help_all`	boolean		An alias for --help --show_hidden_params
`--version`	boolean		Display version text.

Composition

This workflow uses the following subworkflows:

amrfinderplus - Find antimicrobial resistance genes and point mutations.
bactopia_assembler - Assemble bacterial genomes using automated assembler selection.
bactopia_datasets - Download and provide pre-compiled datasets required by Bactopia.
bactopia_gather - Search, validate, gather, and standardize input samples.
bactopia_qc - Perform comprehensive quality control on sequencing reads.
bactopia_sketcher - Create genomic sketches and perform rapid taxonomic classification.
bakta - Rapid bacterial genome annotation.
merlin - MinER assisted species-specific bactopia tool seLectIoN.
mlst - Determine multilocus sequence types (MLST) from bacterial assemblies.
prokka - Annotate bacterial genomes with functional information.

Source

View source on GitHub

Pipeline Overview​

Step 1 - Gather​

Failed Quality Checks​

Step 2 - QC​

Failed Quality Checks​

Step 3 - Assembler​

Failed Quality Checks​

Step 4 - Annotator​

Step 5 - Sketcher​

Step 6 - Sequence Typing​

Step 7 - Antibiotic Resistance​

Step 8 - Merlin​

Usage​

Outputs​

Expected Output Files​

Quality Control​

Assembly​

Annotation​

Typing​

Antimicrobial Resistance​

Comparative Analysis​

Pathogen-Specific Analysis​

Merged Results​

Audit Trail​

Logs​

Nextflow Reports​

Parameters​

Required Parameters​

Composition​

Source​

Pipeline Overview

Step 1 - Gather

Failed Quality Checks

Step 2 - QC

Failed Quality Checks

Step 3 - Assembler

Failed Quality Checks

Step 4 - Annotator

Step 5 - Sketcher

Step 6 - Sequence Typing

Step 7 - Antibiotic Resistance

Step 8 - Merlin

Usage

Outputs

Expected Output Files

Quality Control

Assembly

Annotation

Typing

Antimicrobial Resistance

Comparative Analysis

Pathogen-Specific Analysis

Merged Results

Audit Trail

Logs

Nextflow Reports

Parameters

Required Parameters

Composition

Source
